Compare products
Pick up to three products. Rows show the official datasheet values; a dash means the field is not published for that product.
Pick up to three products. Rows show the official datasheet values; a dash means the field is not published for that product.

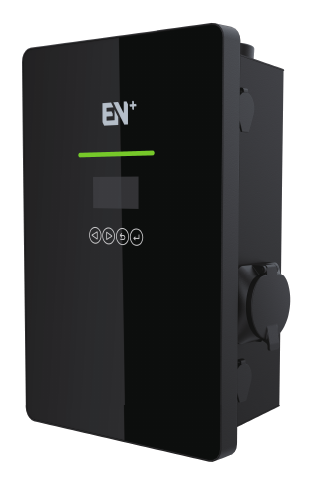

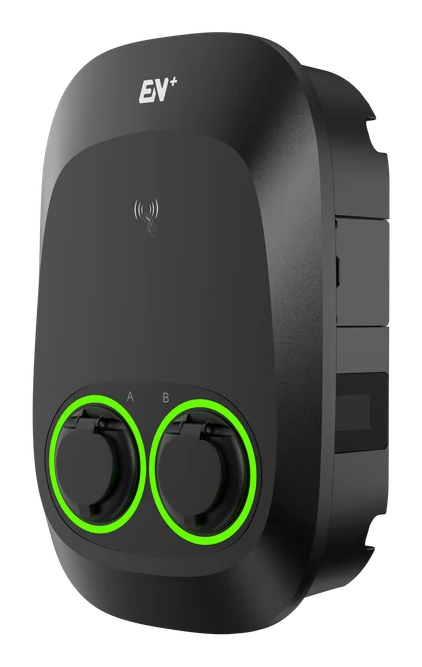

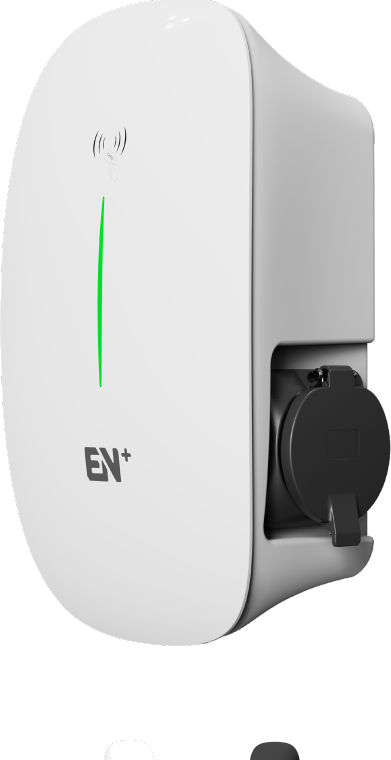

| Specification |  Caro Series7-11 kW |  Vita Series7-22 kW |  Nano Series2×11kW – 2×22 kW |
|---|---|---|---|
| Power Supply | 1P+N+PE (7kW) / 3P+N+PE (11kW) | 1P+N+PE (7kW) / 3P+N+PE (22kW) | 3P+N+PE |
| Rated Voltage | 230V AC / 400V AC | 230V AC / 400V AC | 400V AC |
| Rated Current | 32A / 16A | 32A | 32A / 2x32A |
| Rated Power | 7kW / 11kW | 7kW / 22kW | 2*11kW / 1*22kW (AC022K) ; 2*22kW (AC044K) |
| Charge Connector | Type 2 Cable or Type 2 Socket | Type 2 Cable (7m) / Type 2 Socket | Type 2 Socket / Type 2 Cable (7m) |
| Cable Length | 7m (cable version) | — | — |
| Enclosure | PC943 | PC943+Temper Glass (7kW) / Galvanized Steel+Temper Glass (22kW) | PC943 |
| Colors | Pearl White (Front RAL 9003 / Back PANTONE White C), Space Black (PANTONE Black C) | — | — |
| Installation | Wall-mount / Pole-mount (Optional) | Wall-mount / Pole-mount (Optional) | Wall-mount / Pole-mount (Optional) |
| LED Indicator | Green / Yellow / Red | Green / Yellow / Red | Green / Yellow / Red |
| RFID Reader | MIFARE ISO/IEC 14443A | MIFARE ISO/IEC 14443A | MIFARE ISO/IEC 14443A |
| Start Mode | Plug to Charge / RFID Card / App | Plug to Charge / RFID Card / App | Plug to Charge / RFID card / App |
| Communication | Wi-Fi & Bluetooth & Ethernet standard; Wi-Fi & Bluetooth & 4G optional | Wi-Fi & Ethernet standard; Wi-Fi & 4G standard; Bluetooth hardware ready | Wi-Fi & Ethernet & Bluetooth standard; 4G standard |
| OCPP | OCPP 1.6 Json | OCPP 1.6 Json | OCPP 1.6 Json |
| RCD | 30mA Type A + 6mA DC | 30mA Type A + 6mA DC | 30mA Type A + 6mA DC |
| Ingress Protection | IP65 (cable) / IP54 (socket) | IP65 (cable) / IP54 (socket) | IP54 |
| Impact Protection | IK08 | IK08 | IK10 |
| Certification | CE / CB / RoHS (EU); UKCA / CE / CB / RoHS (UK); EN 303645 | CE / CB / Pen Fault / UKCA | CE / CB / RoHS / Reach |
| Warranty | 2 Years | 2 Years | 2 Years |
| Operation Temperature | -30°C ~ +50°C | -30°C ~ +50°C | -30°C ~ +50°C |
| Product Dimension | 344*192*100mm cable / 344*192*135mm socket (H*W*D) | 356*221*136mm (7kW) / 452*295*148mm (22kW) (H*W*D) | 559*367*197mm socket / 559*367*181mm cable (H*W*D) |
| Net Weight | 4kg cable / 2kg socket | 6kg cable, 3kg socket (7kW) / 14kg, 10kg (22kW) | 10kg socket / 20kg cable |
| Color | — | Black (PANTONE Black C) | Black (PANTONE Black C) |
| LCD Display | — | 2.7'' Monochrome Screen | — |
| RCBO | — | Type A | Type A |
| Energy Meter | — | MID Certified | — |
| Power Measurement Accuracy | — | — | 1% with MID |
